型號Model
|

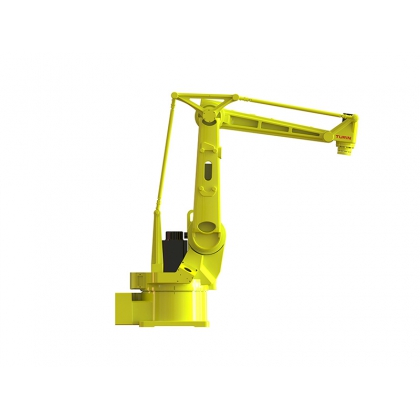

TKB4600
|
|
| 手腕負載Payload | 12kg | |
| 最大工作半徑Max Working Radius | 1435mm | |
| 自由度DOF | 4軸 | |
| 本體重量Body Weight | 175kg | |
| 減速機品牌Reducer Brand | 進口 | |
| 電機品牌Motor Brand | 進口 | |
| 驅動品牌Drive Brand | 進口 | |
| 額定功率Rated Power | 3.5kw | |
| 關節速度Max Speed | J1 | 170°/s |
| J2 | 148°/s | |
| J3 | 185°/s | |
| J4 | 360°/s | |
| 關節范圍Max Operation Area | J1 | ±175° |
| J2 | 85°~-35° | |
| J3 | 70°~-90° | |
| J4 | ±360° | |
| 防護等級protective specification | 54 | |
| 重復定位精度Position Repeat Accuracy | ±0.08mm | |
| 控制柜controller | TRC5-B06 | |
| 工作溫度Working Temperature | 0~45℃ | |
