DeVilbiss的AG360自動噴槍系列可提供多種噴槍類型，旨在為所有應用提供全面、通用的自動噴涂解決方案。
此噴槍設計用于現代涂裝行業嚴苛的工作環境，可提供最高生產率，且停機時間降到最低.
能夠處理高流量流體以及腐蝕性涂料和環境。

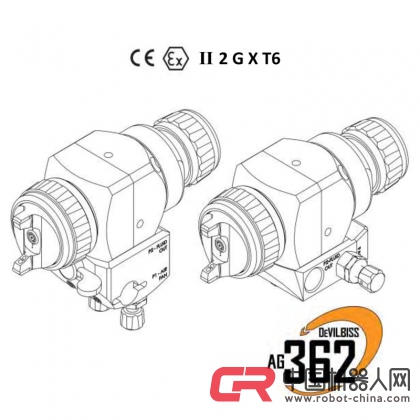

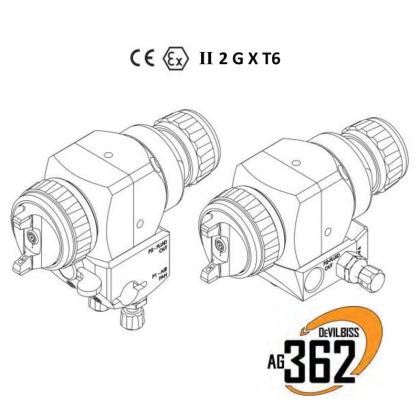

AG362噴槍采用更加通用的設計。

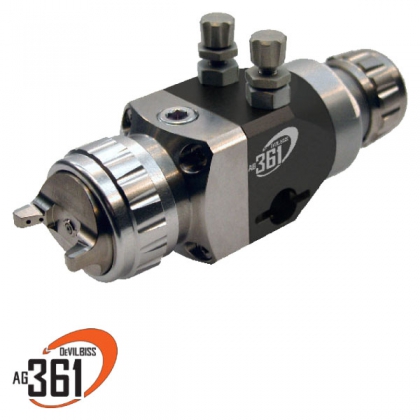

與AG361自動噴槍具有同樣出眾的規格，但同時還添加了可以快速拆卸的歧管底座。
這樣即可在維護、清潔或更換時簡單、快速拆卸噴槍，而不會干擾定位設置。重新連接時，可以恢復啟動流體和空氣，噴槍立即進入正確位置，隨時準備運行。AG362用于一般工業，AG-362P專門設計用于化妝品和玻璃制品業。AG362噴槍可配備兩種不同設計的歧管，進而可選擇空氣/流體的連接布局以及噴槍的連接方法。
AG362L桿式操作型可實現最快速拆卸；AG362S螺接型配備多個機器安裝選件，尺寸較小.
AG362P“微小”槍頭型。改裝的歧管安裝式噴槍，設計用于將涂料精確涂布到化妝品包裝和玻璃制品上。此噴槍采用專門設計用于此類噴涂的‘微小型’精密空氣帽和流體噴嘴。對于超細流體控制，此噴槍可配備千分尺游標指針控制旋鈕組件，從而實現精確的超細流體設置。
技術規格
DeVilbiss AG362 空氣自動噴槍
360 Series Air Cap Chart
|
Air Cap and Type |
Air Consumption |
Air Inlet Pressure Bar (psi) recommended |
*Typical Fluid Flow |
*Typical Fan Pattern size mm |
|
C1 Conventional |
300 l/min (10.7 cfm) |
3 Bar (45 psi) |
150-250 ml/min |
270 mm @ 200mm distance |
|
C2 Conventional |
290 l/min (10.3 cfm) |
3 Bar (45 psi) |
100-350 ml/min |
250 mm @ 200mm distance |
|
C3 Conventional |
440 l/min (15.7 cfm) |
3 Bar (45 psi) |
250-600 ml/min |
360 mm @ 200mm distance |
|
TE10 Trans-Tech/High Efficiency |
255 l/min (9.1 cfm) |
2 Bar (30 psi) |
150-200 ml/min |
300 mm @ 200mm distance |
|
TE20 Trans-Tech/High Efficiency |
325 L/min (11.6 cfm) |
2 Bar (30 psi) |
150-200 ml/min |
290 mm @ 200mm distance |
|
TE30 Trans-Tech/High Efficiency |
375 L/min (13.3 cfm) |
2 Bar (30 psi) |
200-300 ml/min |
300 mm @ 200mm distance |
|
TE40 Trans-Tech/High Efficiency |
355 L/min (12.6 cfm) |
2 Bar (30 psi) |
250-400 ml/min |
380 mm @ 200mm distance |
|
TE50 Trans-Tech/High Efficiency |
425 L/min (15.1 cfm) |
2 Bar (30 psi) |
250-400 ml/min |
300 mm @ 200mm distance |
|
HV30 HVLP |
450 L/min (16.0 cfm) |
1.75 Bar (26 psi) |
160-200 ml/min |
315 mm @ 200mm distance |
|
C62 Conventional |
431 L/min (15.4 cfm) |
3 Bar (45 psi) |
< 3.5 L/min |
390 mm @ 300mm distance |
|
C64 Conventional |
400 L/min (14.3 cfm) |
3 Bar (45 psi) |
< 2.5 L/min |
340 mm @ 300mm distance |
|
C67 Conventional |
426 L/min (15.2 cfm) |
3 Bar (45 psi) |
< 2.0 L/min |
430 mm @ 300mm distance |
Note: HV30 (HVLP) operates at 0.7 bar (10 psi) at the cap. All illustrated flow rates may vary according to paint/material and pressures used.
Spray gun specifications
|
Gun Dimensions & Weights |
|
|
AG-362 Gun Size (L x H x W) mm |
122 x 44 x 44 |
|
AG-362 (Gun only) Weight |
557 g (inc air cap) |
|
AG-362P Size (L x H x D) mm |
145 x 44 x 44 |
|
AG-362P (Gun only) Weight |
524 g (inc air cap) |
|
Manifold Dimensions & Weights |
|
|
Cam Manifold Size (L x W x H) mm |
60 x 44 x 53 (inc valves) |
|
Cam Manifold Weight |
347 g |
|
Screw Manifold Size (L x W x H) mm |
59 x 63 (inc valves) x 20 |
|
Screw Manifold Weight |
268 g |
|
All Guns |
|
|
Max Air Input Pressure (P1) |
7 bar |
|
Max Fluid Input Pressure (P2) |
7 bar |
|
Max Operating Ambient Temperature |
40°C nominal |
|
Gun Head & Fluid Passageways |
Stainless Steel |
|
Gun Body Material |
QuickClean™ coated Aluminium |
|
Manifold Material |
Stainless Steel |
|
Fluid Nozzle & Needle Materials |
303 Stainless Steel, Nitride coated Stainless Steel, |
|
Seals & O rings |
HDPE, FEPM, PTFE, FFKM |
Fluid & Air Inlets
|
AG-362L Lever Manifold |
AG-362S Screw Manifold |
|
CYL Air inlet connection 1/8” G |
CYL Air inlet connection 1/8” G |
|
Fluid Inlet connection 1/8” G |
Fluid Inlet connection 1/4’ NPS |
|
Fluid Outlet connection 1/8” G |
Fluid Outlet connection 1/4” NPS |
|
ATOM Air inlet connection 1/8” G |
CAP Air inlet (ATOM+FAN) 1/4” G |
|
FAN Air inlet connection 1/8” G |
